Testing the Pulse width modulation output

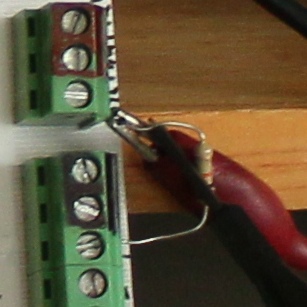

The 10k resistor

of the  Velleman K8061 USB interface board


The K8061 has a PWM output which, on my board, has an output frequency of 15.6 kHz. In order to test this output, I connected a 10k resistor between the output of the digital to analogue converter and the pulse width modulation output.

The oscilloscope is connected between 0V and the PWM output.

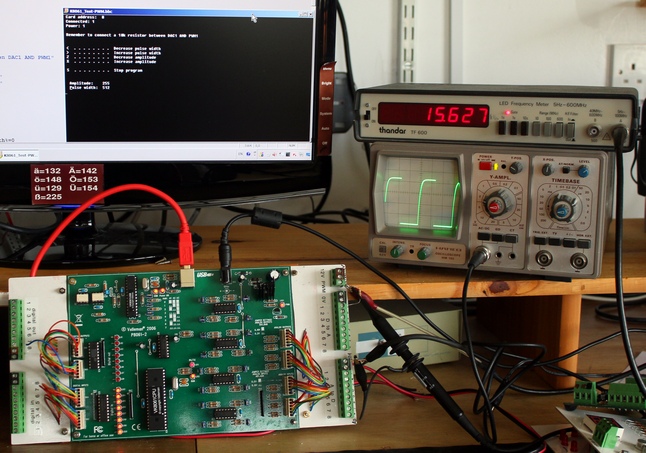

The test setup

I wrote a little program which allows you to change the pulse width from the keyboard.

As the supply is taken from the DAC, the amplitude can also be changed in a rather neat way. Admittedly all this is no more than a little demonstration, but it is great fun to set up. The arrangement is shown on the left.

On my K8061, the output frequency is a very steady 15.627kHz and doesn't change with decreasing amplitude.

As usual I supply a zip archive with the program file and the executable

K8061_TestPWM.zip

There is also a video of this little test



 10 REM Testing  the 8061
   20 REM Version 1.0
   30 REM Just testing
   35  REM Jochen Lueg
   40 REM Limavady February 2011
   50 COLOUR 128
   60 CLS
   70 COLOUR 15
   80
   90 PROCK8061_init
  100 SYS K8061_CloseDevices%
  110 SYS K8061_OpenDevice% TO Card%
  120 PRINT " Card address:  ";Card%
  130 SYS K8061_Connected%,Card% TO Con%
  140 PRINT " Connected: ";Con%
  150
  160 SYS K8061_PowerGood%,Card% TO Power%
  170 PRINT " Power: ";Power%
  180 PRINT
  190 PROCpwm
  200
  210 SYS K8061_CloseDevices%
  220 END
  230
  240
  250 DEFPROCpwm
  260 LOCAL Width%,K$,An%
  270 An%=255:Width%=512:K$=""
  280 PRINT " Remember to connect a 10k resistor between DAC1 AND PWM1"
  290 PRINT
  300 PRINT
  310 PRINT " <  . . . . . . . .  Decrease pulse width"
  320 PRINT " >  . . . . . . . .  Increase pulse width"
  330 PRINT " Z  . . . . . . . .  Decrease amplitude"
  340 PRINT " X  . . . . . . . .  Increase amplitude"
  350 PRINT
  360 PRINT " S  . . . . . . . .  Stop program"
  370
  380
  390 REPEAT
  400   K$=INKEY$(0)
  410   IF K$="," OR K$="<" Width%+=4:IF Width%<0 Width%=0
  420   IF K$="." OR K$=">" Width%-=4:IF Width%>1023 Width%=1023
  430   IF K$="z" OR K$="Z" An%-=1:IF An%<0 An%=0
  440   IF K$="x" OR K$="X" An%+=1:IF An%>255 An%=255
  450   PRINTTAB(2,15)"Amplitude:    ";An%;"    "
  460   PRINTTAB(2,16)"Pulse width:  ";Width%
  470   SYS K8061_OutputPWM%,Card%,Width%
  480   SYS K8061_OutputAnalogChannel%,Card%,1,An%
  490 UNTIL K$="s" OR K$="S"
  500
  510 ENDPROC


    530
  540
  550 DEFPROCK8061_init
  560 REM  Complete list of routines
  570 SYS"LoadLibrary","K8061.dll" TO K8061_Board%
  580 SYS"GetProcAddress",K8061_Board%,"OpenDevice" TO K8061_OpenDevice%
  590 SYS"GetProcAddress",K8061_Board%,"CloseDevices" TO K8061_CloseDevices%
  600 SYS"GetProcAddress",K8061_Board%,"CloseDevice" TO K8061_CloseDevice%
  610 SYS"GetProcAddress",K8061_Board%,"ReadAnalogChannel" TO K8061_ReadAnalogChannel%
  620 SYS"GetProcAddress",K8061_Board%,"ReadAllAnaloge" TO K8061_ReadAllAnalog%
  630 SYS"GetProcAddress",K8061_Board%,"OutputAnalogChannel" TO K8061_OutputAnalogChannel%
  640 SYS"GetProcAddress",K8061_Board%,"OutputAllAnaloge" TO K8061_OutputAllAnalog%
  650 SYS"GetProcAddress",K8061_Board%,"ClearAnalogChannel" TO K8061_ClearAnalogChannel%
  660 SYS"GetProcAddress",K8061_Board%,"ClearAllAnalog" TO K8061_ClearAllAnalog%
  670 SYS"GetProcAddress",K8061_Board%,"SetAnalogChannel" TO K8061_SetAnalogChannel%
  680 SYS"GetProcAddress",K8061_Board%,"SetAllAnalog" TO K8061_SetAllAnalog%
  690 SYS"GetProcAddress",K8061_Board%,"OutputAllDigital" TO K8061_OutputAllDigital%
  700 SYS"GetProcAddress",K8061_Board%,"ClearDigitalChannel" TO K8061_ClearDigitalChannel%
  710 SYS"GetProcAddress",K8061_Board%,"ClearAllDigital" TO K8061_ClearAllDigital%
  720 SYS"GetProcAddress",K8061_Board%,"SetDigitalChannel" TO K8061_SetDigitalChannel%
  730 SYS"GetProcAddress",K8061_Board%,"SetAllDigital"  TO K8061_SetAllDigital%
  740 SYS"GetProcAddress",K8061_Board%,"ReadDigitalChannel" TO K8061_ReadDigitalChannel%
  750 SYS"GetProcAddress",K8061_Board%,"ReadAllDigital" TO K8061_ReadAllDigital%
  760 SYS"GetProcAddress",K8061_Board%,"OutputPWM" TO K8061_OutputPWM%
  770 SYS"GetProcAddress",K8061_Board%,"PowerGood" TO K8061_PowerGood%
  780 SYS"GetProcAddress",K8061_Board%,"Connected" TO K8061_Connected%
  790 SYS"GetProcAddress",K8061_Board%,"ReadVersion" TO K8061_ReadVersion%
  800 SYS"GetProcAddress",K8061_Board%,"ReadBackDigitalOut" TO K8061_ReadBackDigitalOut%
  810 SYS"GetProcAddress",K8061_Board%,"ReadBackAnalogOut" TO K8061_ReadBackAnalogOut%
  820 SYS"GetProcAddress",K8061_Board%,"ReadBackPWMOut" TO K8061_ReadBackPWMOut%
  830 ENDPROC
  840
  850
