A high I Stepper driver


This small project is designed to drive a stepper motor which needs a higher current than a single digital output of the Velleman board can supply. The ULN 2803 chip used by Velleman to drive the digital outputs has a factory rating of 0.5A per channel, though Velleman recommend a smaller current. The ports of the ULN 2803 can be switched in parallel, hence doubling the current that can be sunk. The small pcb shown below achieves this by connecting four pairs of outputs in parallel.

The motor shown is a 6V stepper motor which draws 1.2A per coil. By reducing the input voltage to 4.5V the circuit had no trouble driving this motor without causing an overload. But please take care - the ULN 2803 chip has a habit of quietly dying if it is asked to sink too much current.

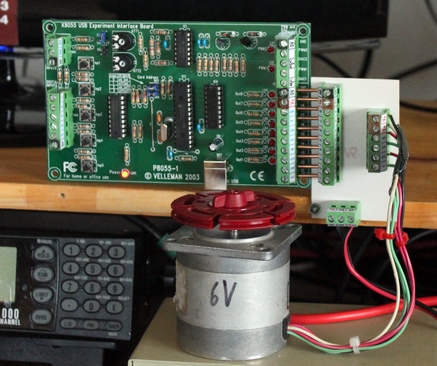

The single stepper project
The pcb layout

The program

I have used the program to demonstrate the two driving modes of a unipolar stepping motor. Full step and half step. The full step method energizes the four coils in sequence, one at a time. Like this: A B C D A B C D A B C D and so on. Each pulse turns the motor by one step.

The half step method energizes first one coil, then the same coil plus the next in the series. This forces the rotor to a position half way between the two coils. The sequence looks like this: A AB B BC C CD D DA and so on.

The result is a much smoother action, though the speed is reduced by half.



 Below is a link to a zip archive of  the BBC BASIC for Windows program file and the executable of the same program, in case you don't have BB4W


K8055_high-I-stepper-files.zip


Here is a YouTube video of the project


Should you prefer using the K8061 interface board you may find the archive below quite useful:


K8061_high-I-stepper-files-1.zip


   10 REM Single stepper motor driver
   20 REM Version 1
   30 REM For The Velleman K8055 USB interface #
   40 REM Jochen Lueg
   50 REM http://roevalley.com/newsbrowser/v-projects/v-index.htm
   60 REM Limavady, January 2012
   70
   80 ON ERROR PRINT ERL;"  ";REPORT$:END
   90 PROCK8055_init
  100 PROCinit
  110 SYS K8055_CloseDevice%
  120 SYS K8055_OpenDevice%,0
  130 PRINT
  140 PRINT " Motor controls"
  150 PRINT
  160 PRINT " Left       . . . . . .  Z"
  170 PRINT " Right      . . . . . .  C"
  180 PRINT " Stop       . . . . . .  X"
  190 PRINT " Full step  . . . . . .  F"
  200 PRINT " Half step  . . . . . .  H"
  210 PRINT
  220 PRINT
  230 PRINT " Number keys above QWERTY Press for 1 second"
  240 PRINT
  250 PRINT " Fastest    . . . . . .  1"
  260 PRINT " Slowest    . . . . . .  9"
  270 PRINT
  280 PRINT " Press 'S' to leave the program"
  290
  300 REPEAT
  310   Key$=INKEY$(0) : REPEAT UNTIL INKEY(0)=-1
  320   IF Key$="c" OR Key$="C" Direction$="Right"
  330   IF Key$="z" OR Key$="Z" Direction$="Left"
  340   IF Key$="s" OR Key$="S" Direction$="Finished"
  350   IF Key$="x" OR Key$="X" Direction$="Stop"
  360   IF Key$="h" OR Key$="H" Mode$="Half"
  370   IF Key$="f" OR Key$="F" Mode$="Full"
  380   IF Key$="1" T%=35*S%    :Speed$="Fast"
  390   IF Key$="2" T%=70*S%    :Speed$="Fast-1"
  400   IF Key$="3" T%=140*S%   :Speed$="Fast-2"
  410   IF Key$="4" T%=280*S%   :Speed$="Fast-3"
  420   IF Key$="5" T%=560*S%   :Speed$="Half"
  430   IF Key$="6" T%=1120*S%  :Speed$="Slow+3"
  440   IF Key$="7" T%=2240*S%  :Speed$="Slow+2"
  450   IF Key$="8" T%=4480*S%  :Speed$="Slow+1"
  460   IF Key$="9" T%=8960*S%  :Speed$="Slow"
  470   IF Direction$="Right" AND Mode$="Full" THEN PROCfull_step_right
  480   IF Direction$="Right" AND Mode$="Half" THEN PROChalf_step_right
  490   IF Direction$="Left" AND Mode$="Full"  THEN PROCfull_step_left
  500   IF Direction$="Left" AND Mode$="Half"  THEN PROChalf_step_left
  510   IF Direction$ <> "Wait" PRINTTAB(1,16);Mode$;" step. Turning ";Direction$;" with speed ";Speed$;"   "
  520   IF Direction$="Stop" PRINTTAB(1,16)"Motor stopped                                              "
  530   IF Direction$="Stop" SYS K8055_ClearAllDigital%:Direction$="Wait"
  540 UNTIL Direction$="Finished"
  550
  560 PRINTTAB(1,16)"All good things come to an end.                                     "
  570 SYS K8055_ClearAllDigital%
  580 SYS K8055_CloseDevice%
  590 *QUIT
  600 END
  610
  620
  630
  640 DEFPROChalf_step_right
  650 FOR J%=1 TO 8
  660   SYS K8055_WriteAllDigital%,HalfStep%(J%): FOR I%=1 TO T%:NEXT
  670 NEXT
  680 ENDPROC
  690
  700

710 DEFPROChalf_step_left
  720 FOR J%=8 TO 1 STEP -1
  730   SYS K8055_WriteAllDigital%,HalfStep%(J%): FOR I%=1 TO T%:NEXT
  740 NEXT
  750 ENDPROC
  760
  770
  780 DEFPROCfull_step_right
  790 FOR J%=1 TO 4
  800   SYS K8055_WriteAllDigital%,FullStep%(J%): FOR I%=1 TO T%:NEXT
  810 NEXT
  820 ENDPRO


  830
  840
  850 DEFPROCfull_step_left
  860 FOR J%=4 TO 1 STEP -1
  870   SYS K8055_WriteAllDigital%,FullStep%(J%): FOR I%=1 TO T%:NEXT
  880 NEXT
  890 ENDPROC
  900
  910
  920 DEFPROCinit
  930 COLOUR 128
  940 CLS
  950 COLOUR 15
  960 W%=0
  970 Direction$="Stop"
  980 S%=5000
  990 T%=S%*35
 1000 Speed$="Fast"
 1010 Mode$="Full"
 1020
 1030 DIM HalfStep%(8)
 1040 HalfStep%(1)=&11
 1050 HalfStep%(2)=&33
 1060 HalfStep%(3)=&22
 1070 HalfStep%(4)=&66
 1080 HalfStep%(5)=&44
 1090 HalfStep%(6)=&CC
 1100 HalfStep%(7)=&88
 1110 HalfStep%(8)=&99
 1120
 1130 DIM FullStep%(4)
 1140 FullStep%(1)=%00010001
 1150 FullStep%(2)=%00100010
 1160 FullStep%(3)=%01000100
 1170 FullStep%(4)=%10001000
 1180
 1190 ENDPROC
 1200
 1210
 1220 DEFPROCK8055_init
 1230 REM  Typing errors in routine name do not generate an error message - they just hang up the program.
 1240 REM These are all the system calls in the order found in the manual
 1250 SYS"LoadLibrary","K8055D.dll" TO K8055_Board%
 1260 SYS"GetProcAddress",K8055_Board%,"OpenDevice" TO K8055_OpenDevice%
 1270 SYS"GetProcAddress",K8055_Board%,"CloseDevice" TO K8055_CloseDevice%
 1280 SYS"GetProcAddress",K8055_Board%,"ReadAnalogChannel" TO K8055_ReadAnalogChannel%
 1290 SYS"GetProcAddress",K8055_Board%,"ReadAllAnalog" TO K8055_ReadAllAnalog%
 1300 SYS"GetProcAddress",K8055_Board%,"OutputAnalogChannel" TO K8055_OutputAnalogChannel%
 1310 SYS"GetProcAddress",K8055_Board%,"OutputAllAnalog" TO K8055_OutputAllAnalog%
 1320 SYS"GetProcAddress",K8055_Board%,"ClearAnalogChannel" TO K8055_ClearAnalogChannel%
 1330 SYS"GetProcAddress",K8055_Board%,"ClearAllAnalog" TO K8055_ClearAllAnalog%
 1340 SYS"GetProcAddress",K8055_Board%,"SetAnalogChannel" TO K8055_SetAnalogChannel%
 1350 SYS"GetProcAddress",K8055_Board%,"SetAllAnalog"  TO K8055_SetAllAnalog%
 1360 SYS"GetProcAddress",K8055_Board%,"WriteAllDigital" TO K8055_WriteAllDigital%
 1370 SYS"GetProcAddress",K8055_Board%,"ClearDigitalChannel" TO K8055_ClearDigitalChannel%
 1380 SYS"GetProcAddress",K8055_Board%,"ClearAllDigital" TO K8055_ClearAllDigital%
 1390 SYS"GetProcAddress",K8055_Board%,"SetDigitalChannel" TO K8055_SetDigitalChannel%
 1400 SYS"GetProcAddress",K8055_Board%,"SetAllDigital"  TO K8055_SetAllDigital%
 1410 SYS"GetProcAddress",K8055_Board%,"ReadDigitalChannel" TO K8055_ReadDigitalChannel%
 1420 SYS"GetProcAddress",K8055_Board%,"ReadAllDigital"  TO K8055_ReadAllDigital%
 1430 SYS"GetProcAddress",K8055_Board%,"ResetCounter"  TO K8055_ResetCounter%
 1440 SYS"GetProcAddress",K8055_Board%,"ReadCounter"  TO K8055_ReadCounter%
 1450 SYS"GetProcAddress",K8055_Board%,"SedtCounterDebouceTime"  TO K8055_SetCounterDebounceTime%
 1460 ENDPROC
