An LED board

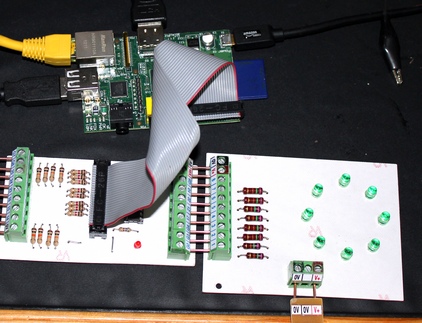

The first project

The pcb layout
Above are photographs of the LED board connected to my interface board and hence to the Raspberry pi. There is also a PCB layout. I never made a circuit diagram. The power for the LEDs is connected to the bottom of the board and the eight lines as well as V+ and 0V conenect straight to the interface. A BBC BASIC program is below. It 'walks' an LED left and right at different speeds and flashes all the LEDs, simply to show that the system works. To control the GPIO pins you need a module called 'GPIO' written by a talented fellow called Tank. I got my copy from here:

Tanks website


The module  provides all the system calls to control the GPIO pins. The most essential  commands are as follow:


SYS"GPIO_EnableI2C",0

Switches the I2C pins to GPIO

SYS"GPIO_ExpAsGPIO",2

switches all the expansion port pins into GPIO modes.


SYS"GPIO_WriteData",PinNumber%,1

turns pin PinNumber% ON


SYS"GPIO_WriteData",PinNumber%,0

turns it OFF My board uses (from bit 0 to bit 7) GPIO pins 0, 1, 4, 17, 21, 22, 10 and 9 as outputs.



REM LED_Circus
REM Fool around with some LEDs
REM Jochen Lueg
REM http://roevalley.com
REM November 2012
REM Version 1.0

ON ERROR PRINT REPORT$;" at line: ";ERL:STOP
PROCinit

OSCLI"RMEnsure GPIO 0.00 RMLoad GPIO"
OSCLI"RMEnsure GPIO 0.40 ERROR HELP can't find the GPIO module"
SYS"GPIO_EnableI2C",0
SYS"GPIO_ExpAsGPIO",2
OFF
VDU23,17,7,6,16;16;0;0;
VDU 5
GCOL128
CLG
GCOL 11
MOVE 0,2000

PRINT " Turn right  . . . . . .  R"
PRINT " Turn left   . . . . . .  L"
PRINT " Flash all   . . . . . .  F"
PRINT " Random      . . . . . .  A"
PRINT
PRINT " Speeds      . . . . . .  1 - 4"
PRINT
PRINT " Return to menu  . . . .  Spacebar"
PRINT " Quit program  . . . . .  Q"

REPEAT
  K$=INKEY$(0)
  IF K$="R" OR K$="r"  PROCturn_right
  IF K$="L" OR K$="l"  PROCturn_left
  IF K$="F" OR K$="f"  PROCflash_all
  IF K$="A" OR K$="a"  PROCrandom
UNTIL K$="q" OR K$="Q"
END


DEFPROCflash_all
LOCAL J%
REPEAT
  FOR J% = 0 TO 7
    SYS"GPIO_WriteData",LED%(J%),1
  NEXT
  PROCwaste_time
  PROCclear_all
  PROCwaste_time
UNTIL K$=" "
PROCclear_all
ENDPROC


DEFPROCturn_right
LOCAL J%
REPEAT
  FOR J% = 0 TO 7
    SYS"GPIO_WriteData",LED%(J%),1
    PROCwaste_time
    PROCclear_all
  NEXT J%
UNTIL K$=" "
PROCclear_all
ENDPROC


DEFPROCturn_left
LOCAL J%
REPEAT
  FOR J% = 7 TO 1 STEP-1
    SYS"GPIO_WriteData",LED%(J%),1
    PROCwaste_time
    PROCclear_all
  NEXT J%
UNTIL K$=" "
PROCclear_all
ENDPROC


DEFPROCclear_all
LOCAL J%
FOR J%=0 TO 7
  SYS"GPIO_WriteData",LED%(J%),0
NEXT
ENDPROC


DEFPROCwaste_time
K$=INKEY$(Time%)
IF K$="1" Time%=3
IF K$="2" Time%=5
IF K$="3" Time%=10
IF K$="4" Time%=20
ENDPROC


DEFPROCrandom
LOCAL N%
REPEAT
  N%=RND(8)
  SYS"GPIO_WriteData",LED%(N%-1),1
  PROCwaste_time
  PROCclear_all
UNTIL K$=" "
PROCclear_all
ENDPROC


DEFPROCinit
W%=0
Time%=5
REM Rotation
DIM LED%(7):LED%()=0,1,4,17,9,10,22,21
ENDPROC






Back to the interface section
